LM5005

Step-Down Switching Regulator

LM5005 Features

* 1 High-Efficiency DC-DC Buck Converter

* Wide Input Voltage Range From 7 V to 75 V

* Adjustable Output Voltage as Low as 1.225 V

* Output Current as High as 2.5 A

* Junction Temperature Range

* 40°C to 125°C

* Integrated 75-V, 160-mΩ Buck MOSFE

LM5005 Datasheet (1.45 MB)

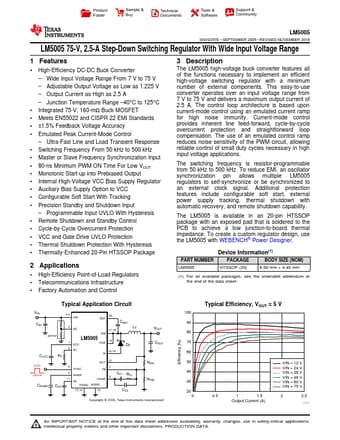

Preview of LM5005 PDF

Datasheet Details

Part number:

LM5005

Manufacturer:

Texas Instruments ↗

File Size:

1.45 MB

Description:

Step-down switching regulator.
