LM5006 - On-Time Buck Switching Regulator

LM5006 Description

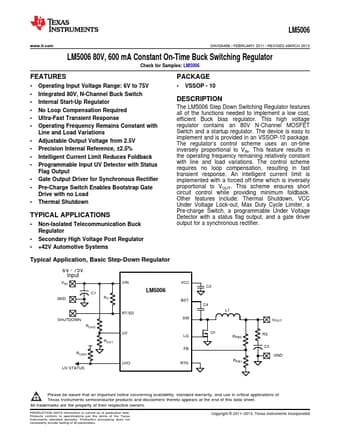

LM5006 www.ti.com SNVS646B * FEBRUARY 2011 * REVISED MARCH 2013 LM5006 80V, 600 mA Constant On-Time Buck Switching Regulator Check .
The LM5006 Step Down Switching Regulator features all of the functions needed to implement a low cost, efficient Buck bias regulator.

LM5006 Features

* 1
* 2 Operating Input Voltage Range: 6V to 75V
* Integrated 80V, N-Channel Buck Switch
* Internal Start-Up Regulator
* No Loop Compensation Required
* Ultra-Fast Transient Response
* Operating Frequency Remains Constant with Line and Load Variations

LM5006 Applications

* Non-Isolated Telecommunication Buck Regulator
* Secondary High Voltage Post Regulator
* +42V Automotive Systems PACKAGE
