LM5122-Q1

Wide-Input Synchronous Boost Controller

LM5122-Q1 Features

* 1 AEC-Q100 Qualified with the following results:

* Device Temperature Grade 1:

* 40°C to +125°C Ambient Operating Temperature

* Device HBM ESD Classification Level 2

* Device CDM ESD Classification Level C6

* Maximum Input Voltage: 65 V

* Minim

LM5122-Q1 General Description

The LM5122 is a multi-phase capable synchronous boost controller intended for high-efficiency synchronous boost regulator applications. The control method is based upon peak-current-mode control. Current-mode control provides inherent line feed forward, cycle-by-cycle current limiting, and ease of l.

LM5122-Q1 Datasheet (2.66 MB)

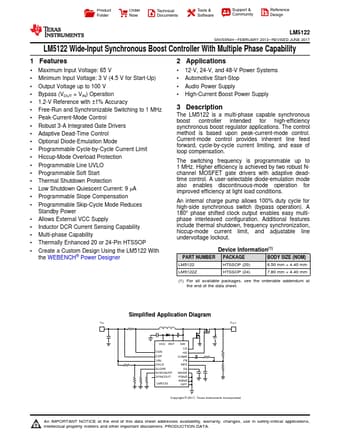

Preview of LM5122-Q1 PDF

Datasheet Details

Part number:

LM5122-Q1

Manufacturer:

Texas Instruments ↗

File Size:

2.66 MB

Description:

Wide-input synchronous boost controller.
Product Folder Order Now Technical Documents Tools & Software Support & Community Reference Design LM5122-Q1 SNVSAW9

* JUNE 2017 LM5122-.
