LM5100 Datasheet, Driver, National Semiconductor

LM5100 Features

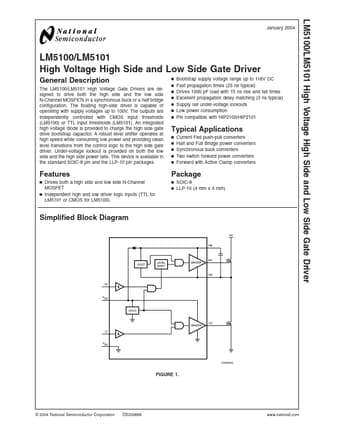

• Driver n Drives both a high side and low side N-Channel MOSFET n Independent high and low driver logic inputs (TTL for LM5101 or CMOS for LM5100) Package n SOIC-8 n LLP-10 (4 mm x 4 mm) Simp

PDF File Details

Part number:

LM5100

Manufacturer:

National Semiconductor

File Size:

350.70kb

Download:

📄 Datasheet

Description:

High voltage high side and low side gate driver. The LM5100/LM5101 High Voltage Gate Drivers are designed to drive both the high side and the low side N-Channel MOSFETs in a synchron

LM5100 Application

• Applications n n n n n Current Fed push-pull converters Half and Full Bridge power converters Synchronous buck converters Two switch forward power c
