LM5101, LM5100 - High Voltage High Side and Low Side Gate Driver

LM5101 Description

NRND LM5100, LM5101 www.ti.com SNVS267C * MAY 2004 * REVISED MARCH 2005 LM5100 /LM5101 High Voltage High Side and Low Side Gate Dr.
The LM5100/LM5101 High Voltage Gate Drivers are designed to drive both the high side and the low side N-Channel MOSFETs in a synchronous buck or a hal.

LM5101 Features

* 1
* 2 Drives Both a High Side and Low Side NChannel MOSFET
* Independent High and Low Driver Logic Inputs (TTL for LM5101 or CMOS for LM5100)
* Bootstrap Supply Voltage Range up to 118V DC
* Fast Propagation Times (25 ns Typical)
* Drives 1000 pF Load with 15 n

LM5101 Applications

* Current Fed Push-pull Converters
* Half and Full Bridge Power Converters
* Synchronous Buck Converters
* Two Switch Forward Power Converters
* Forward with Active Clamp Converters PACKAGE
* SOIC-8

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LM5101, LM5100. Please refer to the document for exact specifications by model.

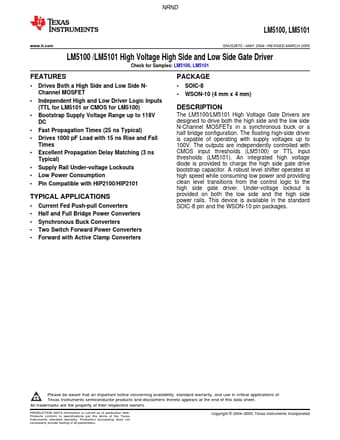

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LM5101, LM5100
Manufacturer
Texas Instruments ↗
File Size
1.02 MB
Datasheet
LM5100-etcTI.pdf
Description
High Voltage High Side and Low Side Gate Driver
Note
This datasheet PDF includes multiple part numbers: LM5101, LM5100.
Please refer to the document for exact specifications by model.
