LM5100C, LM5100A Datasheet - Texas Instruments

LM5100C High-Side and Low-Side Gate Drivers

The LM5100A/B/C and LM5101A/B/C high-voltage gate drivers are designed to drive both the high-side and the low-side N-Channel MOSFETs in a synchronous buck or a half-bridge configuration. The floating high-side driver is capable of operating with supply voltages up to 100 V. The A versions provide a.

LM5100C Features

* 1 Drives Both a High-Side and Low-Side N-Channel MOSFETs

* Independent High- and Low-Driver Logic Inputs

* Bootstrap Supply Voltage up to 118 V DC

* Fast Propagation Times (25-ns Typical)

* Drives 1000-pF Load With 8-ns Rise and Fall Times

* Excellent

LM5100A-etcTI.pdf

This datasheet PDF includes multiple part numbers: LM5100C, LM5100A. Please refer to the document for exact specifications by model.

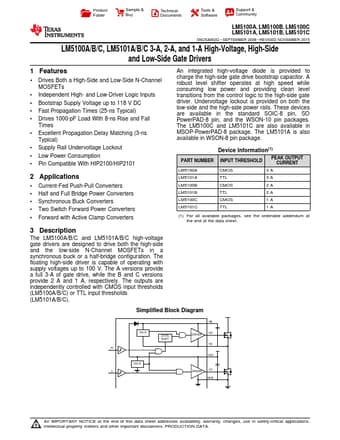

LM5100C Datasheet Preview Page 2 LM5100C Datasheet Preview Page 3

Datasheet Details

Part number:

LM5100C, LM5100A

Manufacturer:

Texas Instruments ↗

File Size:

1.98 MB

Description:

High-side and low-side gate drivers.

Note:

This datasheet PDF includes multiple part numbers: LM5100C, LM5100A.
Please refer to the document for exact specifications by model.
