LM5101A, LM5100A - High-Side and Low-Side Gate Drivers

LM5101A Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community LM5100A, LM5100B, LM5100C LM5101A, LM5101B, LM5101C SNOSAW2Q.
The LM5100A/B/C and LM5101A/B/C high-voltage gate drivers are designed to drive both the high-side and the low-side N-Channel MOSFETs in a synchronous.

LM5101A Features

* 1 Drives Both a High-Side and Low-Side N-Channel MOSFETs
* Independent High- and Low-Driver Logic Inputs
* Bootstrap Supply Voltage up to 118 V DC
* Fast Propagation Times (25-ns Typical)
* Drives 1000-pF Load With 8-ns Rise and Fall Times
* Excellent

LM5101A Applications

* Current-Fed Push-Pull Converters
* Half and Full Bridge Power Converters
* Synchronous Buck Converters
* Two Switch Forward Power Converters

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LM5101A, LM5100A. Please refer to the document for exact specifications by model.

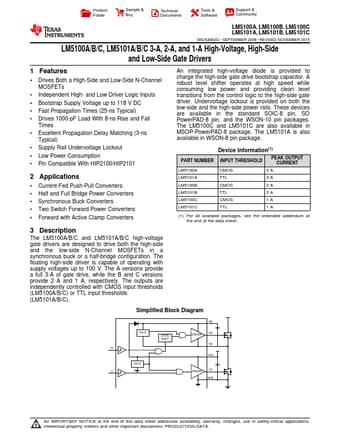

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LM5101A, LM5100A
Manufacturer
Texas Instruments ↗
File Size
1.98 MB
Datasheet
LM5100A-etcTI.pdf
Description
High-Side and Low-Side Gate Drivers
Note
This datasheet PDF includes multiple part numbers: LM5101A, LM5100A.
Please refer to the document for exact specifications by model.
