LM98640 - Analog Front-End

LM98640 Description

LM98640 www.ti.com SNAS596A * JUNE 2012 * REVISED MAY 2013 LM98640 Dual Channel, 14-Bit, 40 MSPS Analog Front End with LVDS Output .
The LM98640 is a fully integrated, high performance 14-bit, 5 MSPS to 40 MSPS signal processing solution for image processing applications.

LM98640 Features

* 1
* 2 Seialized LVDS Outputs
* LVDS Input Clock
* CDS or S/H Processing for CCD or CIS Sensors
* Programmable Analog Gain for Each Channel
* Programmable Analog Offset Correction
* Programmable Input Clamp Voltage
* Programmable Sampling Edge up

LM98640 Applications

* Focal Plane Electronics
* Imaging Attitude Control Systems
* Assembly Line Vision Systems
* Factory Automation Vision Systems
* High-speed Document Scanner

📥 Download Datasheet

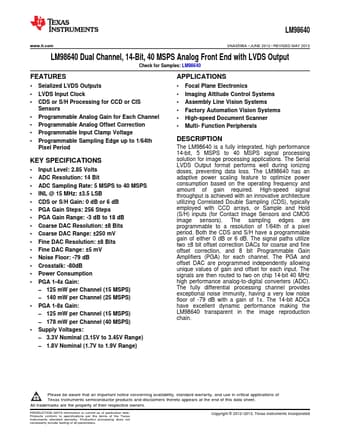

Preview of LM98640 PDF
datasheet Preview Page 2 datasheet Preview Page 3
