LM98519 - 10-bit 65 MSPS 6 Channel Imaging Signal Processor

LM98519 Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community LM98519 SNAS425C * OCTOBER 2007 * REVISED OC.
The LM98519 is a fully integrated, high performance 10-Bit, 65 MSPS signal processing solution for digital color copiers, scanners, and other image pr.

LM98519 Features

* 1 3.3-V Single Supply Operation
* CDS or S/H Processing with Negative Input Signal Polarity
* 32.5-MHz Channel Rate
* Enhanced ESD Protection on Host Interface Pins: SHP, SHD, CLPIN, BLKCLP, AGC_ONB, MCLK, RESETB, SENB, SCLK, SDI, SDO
* Low Power CMOS Design

LM98519 Applications

* Digital Color Copiers
* Scanners
* Image Processing Polarity applications
* Key Specifications
* Maximum Input Level:
* 1.19 Vp-p (CDS Gain = 1.0)
* 0.58 Vp-p (CDS Gain = 2.1)
* Input Sample Rate:
* 5 to 32.5 MSPS
* 6c

📥 Download Datasheet

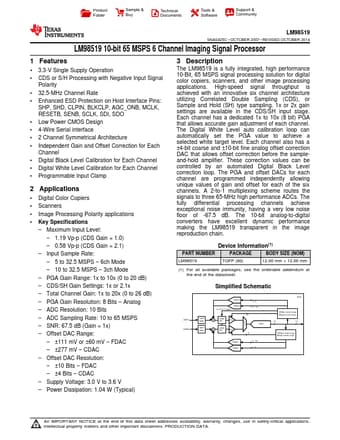

Preview of LM98519 PDF
datasheet Preview Page 2 datasheet Preview Page 3
