LM98501 10-Bit / 27 MSPS Camera Signal Processor

The LM98501 is a CCD signal processor for electronic cameras. The processor provides a common interface to a number of different image sensors including CCD, CMOS, and CIS. Correlated double sampling reduces kTC noise from the image signal. A fast, temperature stable, 8-bit digitally programmable ga.

LM98501 Features

* n n n n n n n n n +3V single power supply Low power CMOS design 4-wire serial interface 2.5V data output voltage swing No missing codes AUX input with input clamp and programmable gain Four color gain and offset registers Digital black level clamp Small 48-lead LQFP package Key Specifications j Max

LM98501_NationalSemiconductor.pdf

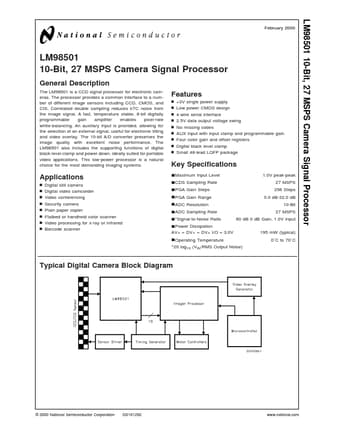

LM98501 Datasheet Preview — Preview of LM98501 PDF

Datasheet Details

Part number:

LM98501

Manufacturer:

National Semiconductor

File Size:

490.49 KB

Description:

10-bit / 27 msps camera signal processor.
