LM98513 Datasheet - National Semiconductor

LM98513 50 MSPS Copier Signal Processor

The LM98513 is a fully integrated, high performance 10-Bit, 50 MSPS CCD signal processing solution for digital copiers and scanners. High-speed signal throughput is achieved with an innovative 2-channel architecture including sample and hold, programmable gain and offset correction and analog-to-dig.

LM98513 Features

* 3 Volt Single Power Supply Low Power CMOS Design 4 Wire Serial Interface 2.5 Volt Data Output Levels Dual Inputs with Symmetrical Architecture Even/Odd Channel Offset Correction Digital Black Level Clamp Programmable Input Clamp Key Specifications Maximum Input Level Input Sampling Rate PGA Gain St

LM98513 Datasheet (415.38 KB)

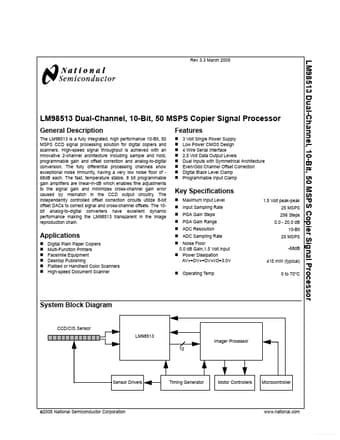

LM98513 Datasheet Preview — Preview of LM98513 PDF

Datasheet Details

Part number:

LM98513

Manufacturer:

National Semiconductor

File Size:

415.38 KB

Description:

50 msps copier signal processor.
