LM98503 10-Bit / 18 MSPS Camera Signal Processor

The LM98503 is a CCD signal processor for digital cameras. The processor provides a common interface to a number of different image sensors including CCD, CMOS, and CIS. Correlated double sampling reduces kTC noise from the image signal. A fast, temperature stable, 8-bit digitally programmable gain .

LM98503 Features

* ! ! ! ! ! ! ! ! ! +3 Volt single power supply Low power CMOS design 4-Wire serial interface 2.5V data output voltage swing AUX input with analog clamp and programmable gain Four color gain and offset registers Digital black level clamp Small 48-lead LQFP package Supports interlace and progressive sc

LM98503_NationalSemiconductor.pdf

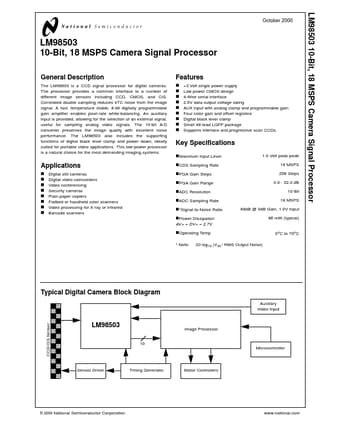

LM98503 Datasheet Preview — Preview of LM98503 PDF

Datasheet Details

Part number:

LM98503

Manufacturer:

National Semiconductor

File Size:

203.19 KB

Description:

10-bit / 18 msps camera signal processor.
