LMH0324 - 3G/HD/SD SDI Dual Output Adaptive Cable Equalizer

LMH0324 Description

Product Folder Order Now Technical Documents Tools & Software Support & Community Reference Design LMH0324 SNLS531B * APRIL 2016 The LMH0324 is a low-power, dual-output, extended reach adaptive cable equalizer.

LMH0324 Features

* 1 Supports ST 424(3G), ST 292(HD), and ST 259(SD)
* Compatible with DVB-ASI and AES10 (MADI)
* Adaptive Cable Equalizer
* Cable Reach (Belden 1694A):
* 200 m at 2.97 Gbps
* 280 m at 1.485 Gbps
* 600 m at 270 Mbps
* Low Power: 78 mW (ty

LMH0324 Applications

* SMPTE Compatible Serial Digital Interface (SDI)
* Broadcast Video Routers, Switchers, and Monitors
* DVB-ASI and Distribution Amplifiers

📥 Download Datasheet

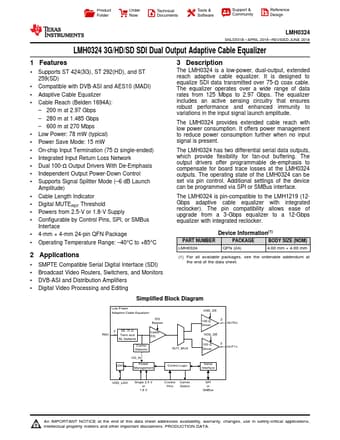

Preview of LMH0324 PDF
