LMH0002 - Digital Cable Driver

Product Overview

National Semiconductor

Datasheet Details

Part number	LMH0002
Manufacturer	National Semiconductor
File Size	485.17 KB
Description	Digital Cable Driver
Datasheet	LMH0002 Datasheet

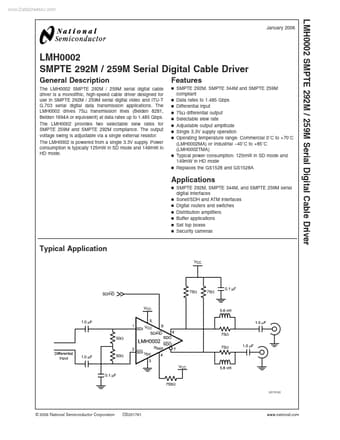

Additional preview pages of the LMH0002 datasheet.

Product details

Description

The LMH0002 SMPTE 292M / 259M serial digital cable driver is a monolithic, high-speed cable driver designed for use in SMPTE 292M / 259M serial digital video and ITU-T G.703 serial digital data transmission applications.

Features

n SMPTE 292M, SMPTE 344M and SMPTE 259M compliant n Data rates to 1.485 Gbps n Differential input n 75Ω differential output n Selectable slew rate n Adjustable output amplitude n Single 3.3V supply operation n Operating temperature range: Commercial 0˚C to +70˚C (LMH0002MA) or Industrial.
40˚C to +85˚C (LMH0002TMA) n Typical power consumption: 125mW in SD mode and 149mW in HD mode n Replaces the GS1528 and GS1528A.
