LMH0041, LMH0341 Datasheet - Texas Instruments

LMH0041, LMH0341, SDI Deserializer

www.ti.com LMH0041, LMH0051 LMH0071, LMH0341 SNLS272Q * APRIL 2007 * REVISED APRIL 2013 3 Gbps, HD, SD, DVB-ASI SDI Deserializer wit.
The LMH0341/0041/0071/0051 SDI Deserializers are part of TI’s family of FPGA-Attach SER/DES products supporting 5-bit LVDS interfaces with FPGAs.

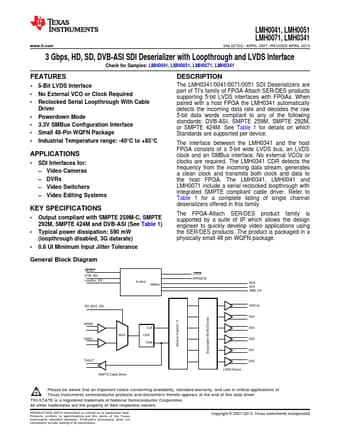

datasheet Preview Page 1 from Datasheet4u.com

LMH0341-etcTI.pdf

LMH0041 Datasheet Preview — This datasheet PDF includes multiple part numbers: LMH0041, LMH0341. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LMH0041, LMH0341

Manufacturer:

Texas Instruments ↗

File Size:

1.05 MB

Description:

SDI Deserializer

Note:

This datasheet PDF includes multiple part numbers: LMH0041, LMH0341.
Please refer to the document for exact specifications by model.

Features

* 1
* 23 5-Bit LVDS Interface
* No External VCO or Clock Required
* Reclocked Serial Loopthrough With Cable Driver
* Powerdown Mode
* 3.3V SMBus Configuration Interface
* Small 48-Pin WQFN Package
* Industrial Temperature range: -40°C to +85°C APP

Applications

* SDI Interfaces for:
* Video Cameras
* DVRs
* Video Switchers
* Video Editing Systems KEY SPECIFICATIONS
* Output compliant with SMPTE 259M-C, SMPTE 292M, SMPTE 424M and DVB-ASI (See Table 1)
* Typical power dissipation: 590 mW (loopthrough di
