LMH0040 Datasheet - Texas Instruments

DVB-ASI SDI Serializer and Cable Driver

LMH0040 Features

* 1

* 2 LVDS Interface to Host FPGA

* No External VCO or Clock Ref Required

* Integrated Variable Output Cable Driver

* 3.3V SMBus Configuration Interface

* Integrated TXCLK PLL Cleans Clock Noise

* Small 48-Pin WQFN Package

* Industrial Temperatu

LMH0040 General Description

The LMH0340/0040/0070/0050 SDI Serializers are part of TI’s family of FPGA-Attach SER/DES products supporting 5-bit LVDS interfaces with FPGAs. An FPGA Host will format data with supplied IP such that the output of the LMH0340 is compliant with the requirements of DVB-ASI, SMPTE 259M-C, SMPTE 292M a.

LMH0040 Datasheet (1.00 MB)

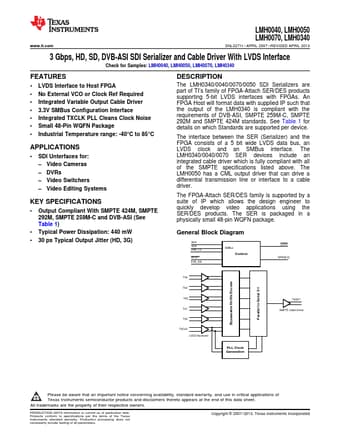

Preview of LMH0040 PDF

Datasheet Details

Part number:

LMH0040

Manufacturer:

Texas Instruments ↗

File Size:

1.00 MB

Description:

Dvb-asi sdi serializer and cable driver.
www.ti.com LMH0040, LMH0050 LMH0070, LMH0340 SNLS271I APRIL 2007 REVISED APRIL 2013 3 Gbps, HD, SD, DVB-ASI SDI Serializer and C.
