LMH0044 Datasheet - National Semiconductor

Adaptive Cable Equalizer

LMH0044 Features

* include separate carrier detect and output mute pins which may be tied together to mute the output when no signal is present. A programmable mute reference is provided to mute the output at a selectable level of signal degradation. Features n SMPTE 292M, SMPTE 344M and SMPTE 259M compliant n Suppor

LMH0044 General Description

The LMH0044 SMPTE 292M / 259M adaptive cable equalizer is a monolithic integrated circuit for equalizing data transmitted over cable (or any media with similar dispersive loss characteristics). The equalizer operates over a wide range of data rates from 143 Mbps to 1.485 Gbps and supports SMPTE 292M.

LMH0044 Datasheet (532.82 KB)

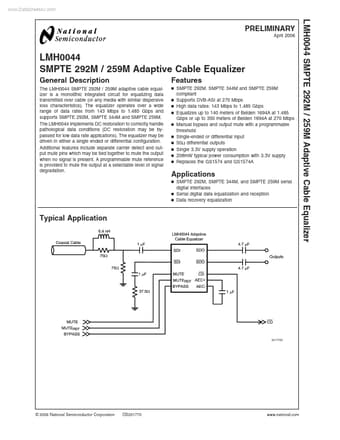

LMH0044 Datasheet Preview — Preview of LMH0044 PDF

Datasheet Details

Part number:

LMH0044

Manufacturer:

National Semiconductor

File Size:

532.82 KB

Description:

Adaptive cable equalizer.
www.DataSheet4U.com LMH0044 SMPTE 292M / 259M Adaptive Cable Equalizer PRELIMINARY April 2006 LMH0044 SMPTE 292M / 259M Adaptive Cable Equalizer Ge.
