LMH6715

Dual Wideband Video Op Amp

LMH6715 Features

* 1

* 2 TA = 25°C, RL = 100Ω, Typical Values Unless Specified.

* Very Low Diff. Gain, Phase: 0.02%, 0.02°

* Wide Bandwidth: 480MHz (AV = +1V/V); 400MHz (AV = +2V/V)

* 0.1dB Gain Flatness to 100MHz

* Low Power: 5.8mA/Channel

* 70dB Channel-to-Chan

LMH6715 General Description

The LMH6715 combines TI's VIP10 high speed complementary bipolar process with TI's current feedback topology to produce a very high speed dual op amp. The LMH6715 provides 400MHz small signal bandwidth at a gain of +2V/V and 1300V/μs slew rate while consuming only 5.8mA per amplifier from ±5V suppli.

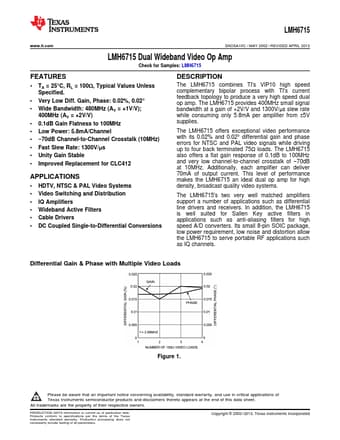

LMH6715 Datasheet (1.48 MB)

Preview of LMH6715 PDF

Datasheet Details

Part number:

LMH6715

Manufacturer:

Texas Instruments ↗

File Size:

1.48 MB

Description:

Dual wideband video op amp.
