LMV321 Low-Voltage Rail-to-Rail Output Operational Amplifier

For an upgraded version with enhanced performance, please refer to LMV321A, LMV358A, and LMV324A. The LMV321, LMV358, and LMV324 devices are single, dual, and quad low-voltage (2.7 V to 5.5 V) operational amplifiers with rail-to-rail output swing. These devices are the most cost-effective solution.

LMV321 Features

* For an upgraded version - refer to LMV321A, LMV358A, and LMV324A

* 2.7-V and 5-V performance

* 40°C to +125°C operation

* No crossover distortion

* Low supply current

* LMV321: 130 μA (typical)

* LMV358: 210 μA (typical)

* LM

LMV321 Datasheet (2.39 MB)

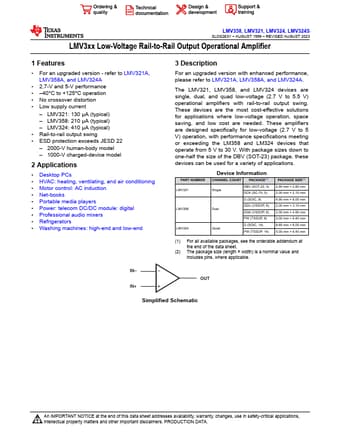

Preview of LMV321 PDF
LMV321 Datasheet Preview Page 2 LMV321 Datasheet Preview Page 3

Datasheet Details

Part number:

LMV321

Manufacturer:

Texas Instruments ↗

File Size:

2.39 MB

Description:

Low-voltage rail-to-rail output operational amplifier.
