LMX2592

RF Synthesizer

LMX2592 Features

* Output Frequency Range from 20 to 9800 MHz

* Industry Leading Phase Noise Performance

* VCO Phase Noise:

* 134.5 dBc/Hz at 1-MHz Offset for 6-GHz Output

* Normalized PLL Noise Floor:

* 231 dBc/Hz

* Normalized PLL Flicker Noise:

* 126 dBc

LMX2592 General Description

The LMX2592 device is a low-noise, wideband RF PLL with integrated VCO that supports a frequency range from 20 MHz to 9.8 GHz. The device supports both fractional-N and integer-N modes, with a 32-bit fractional divider allowing fine frequency selection. Integrated noise of 49 fs for 6-GHz output ma.

LMX2592 Datasheet (2.53 MB)

Rating: 1 ★ (4 votes)

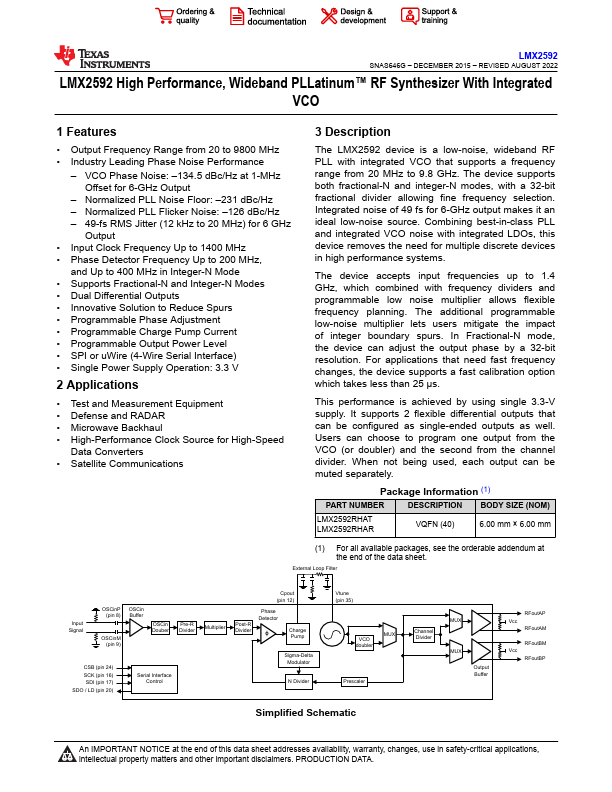

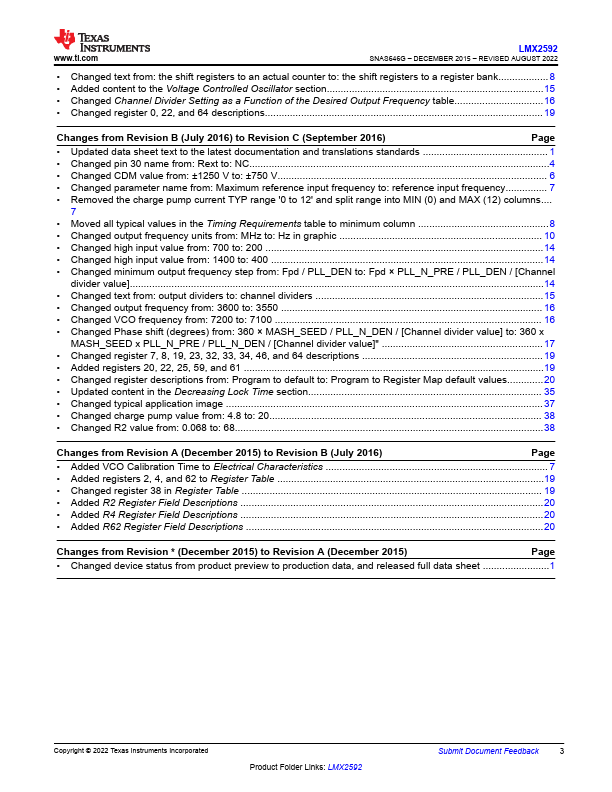

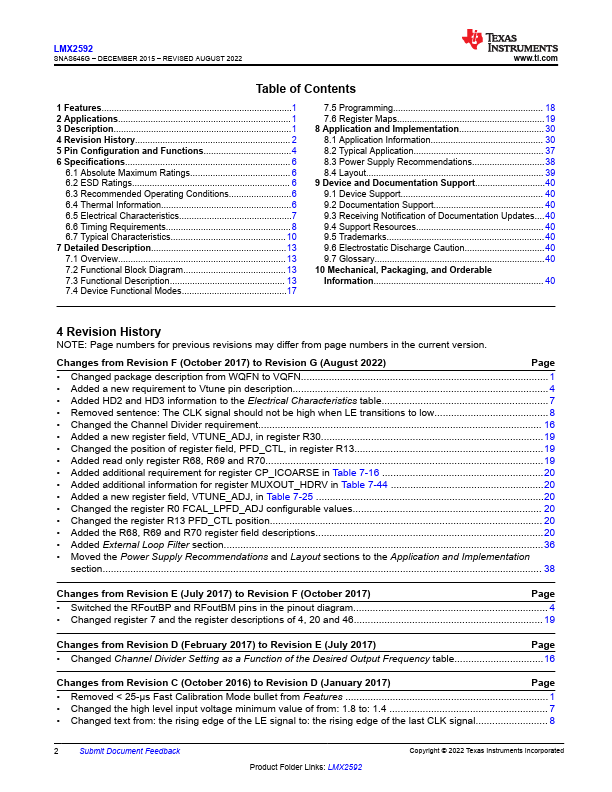

Preview of LMX2592 PDF

Datasheet Details

Part number:

LMX2592

Manufacturer:

Texas Instruments ↗

File Size:

2.53 MB

Description:

Rf synthesizer.
LMX2592 SNAS646G DECEMBER 2015 REVISED AUGUST 2022 LMX2592 High Performance, Wideband PLLatinum™ RF Synthesizer With Integrated VC.
