LP211 Datasheet - Texas Instruments

LP211 - LOW-POWER DIFFERENTIAL COMPARATORS

ordering information The LP211 and LP311 devices are low-power versions of the industry-standard LM211 and LM311 devices.

They take advantage of stable, high-value, ion-implanted resistors to perform the same function as the LM311 series, with a 30:1 reduction in power consumption, but only a 6:1 sl

D Low Power Drain .

.

.

900 μW Typical With 5-V Supply D Operates From ±15 V or From a Single Supply as Low as 3 V D Output Drive Capability of 25 mA D Emitter Output Can Swing Below Negative Supply D Response Time .

.

.

1.2 μs Typ D Low Input Currents: Offset Current .

.

.

2 nA Typ Bias Current .

.

.

15 nA Typ D Wide Common-Mode Input Range: 14.5 V to 13.5 V Using ±15-V Supply D Offset Balancing and Strobe Capability D Same Pinout as LM211, LM311 D Designed To Be Interchangeable With I

LP211-etcTI.pdf

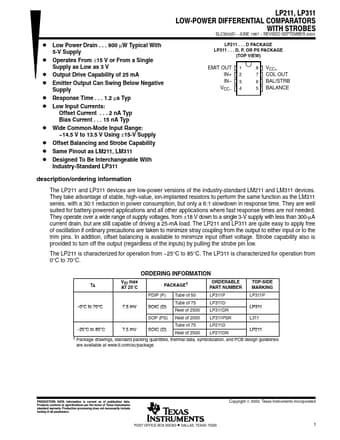

Preview of LP211 PDF
LP211 Datasheet Preview Page 2 LP211 Datasheet Preview Page 3

Datasheet Details

Part number:

LP211

Manufacturer:

Texas Instruments ↗

File Size:

916.71 KB

Description:

Low-power differential comparators.
