LP2178AL

Non-Isolated Buck Switching Power Supply Constant Voltage Control Driver

LP2178AL Features

* LP2178AL is a high-efficiency and high-precision non-isolated step-down switching power supply constant voltage control driver chip. It is suitable for non-isolated Buck and Buckboost topologies with a full range of input voltages from 85VAC to 265VAC, and is especially suitable for driving power s

LP2178AL General Description

Figure 2 Pin package diagram serial number 1ÿ3 2 4 5ÿ6ÿ7ÿ8 Pin Name VCC GND NC C describe Chip power supply and feedback signal detection Chip Ground Floating pin The collector C of the built-in power transistor Limit parameters (Note 1) symbol parameter Parameter Range Unit VCC power suppl.

LP2178AL Datasheet (713.49 KB)

Preview of LP2178AL PDF

Datasheet Details

Part number:

LP2178AL

Manufacturer:

LANDP

File Size:

713.49 KB

Description:

Non-isolated buck switching power supply constant voltage control driver.

📁 Related Datasheet

LP2178 Non-Isolated Buck Switching Power Supply Constant Voltage Control Driver (LANDP)

LP21 Low Profile Crystal (Pletronics)

LP211 LOW-POWER DIFFERENTIAL COMPARATORS (Texas Instruments)

LP2188A Non-Isolated Buck Switching Power Supply (LANDP)

LP2188AL Non-Isolated Buck Switching Power Supply Constant Voltage Control Driver (LANDP)

LP2-D0901xx Contactors (Telemecanique)

LP2-D12004xx Contactors (Telemecanique)

LP2-D1201xx Contactors (Telemecanique)

LP2-D1801xx Contactors (Telemecanique)

LP2-D25004xx Contactors (Telemecanique)

TAGS

LP2178AL Non-Isolated Buck Switching Power Supply Constant Voltage Control Driver LANDP

Image Gallery

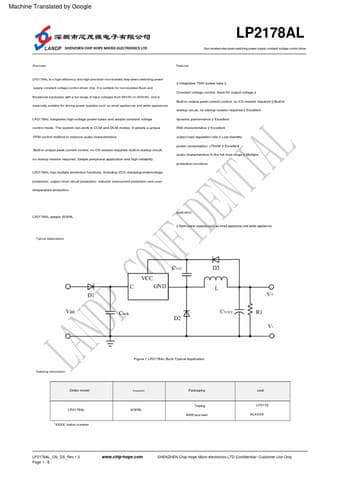

LP2178AL Datasheet Preview Page 2 LP2178AL Datasheet Preview Page 3
