LVC06A

HEX INVERTER BUFFERS/DRIVERS

LVC06A Features

* Operate From 1.65 V to 3.6 V

* Specified From

* 40°C to 85°C,

* 40°C to 125°C, and

* 55°C to 125°C

* Inputs and Open-Drain Outputs Accept Voltages up to 5.5 V SN54LVC06A, SN74LVC06A HEX INVERTER BUFFERS/DRIVERS WITH OPEN-DRAIN OUTPUTS SCAS596N

LVC06A General Description

ORDERING INFORMATION These hex inverter buffers/drivers are designed for 1.65-V to 3.6-V VCC operation. The outputs of the 'LVC06A devices are open drain and can be connected to other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions. The maximum sink current is .

LVC06A Datasheet (1.07 MB)

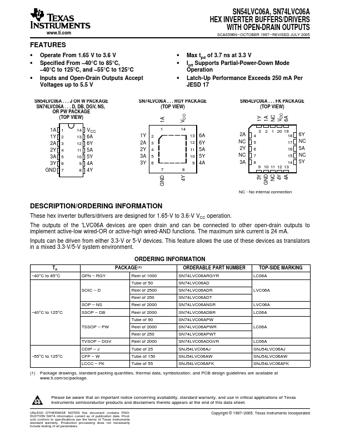

Preview of LVC06A PDF

Datasheet Details

Part number:

LVC06A

Manufacturer:

Texas Instruments ↗

File Size:

1.07 MB

Description:

Hex inverter buffers/drivers.
