LVC2244A

Octal Buffer/Driver

LVC2244A Features

* 1 Operates From 1.65 V to 3.6 V

* Inputs Accept Voltages to 5.5 V

* Max tpd of 5.5 ns at 3.3 V

* Output Ports Have Equivalent 26-Ω Series Resistors, So No External Resistors Are Required

* Typical VOLP (Output Ground Bounce)

LVC2244A General Description

The SN74LVC2244A octal buffer/line driver is designed for 1.65-V to 3.6-V VCC operation. Device Information(1) PART NUMBER PACKAGE BODY SIZE (NOM) SSOP (20) 7.20 mm × 5.30 mm SSOP (20) 8.65 mm × 3.90 mm SN74LVC2244A TVSOP (20) 5.00 mm × 4.40 mm SOIC (20) 12.80 mm × 7.50 mm TSSOP (20) 6.

LVC2244A Datasheet (1.38 MB)

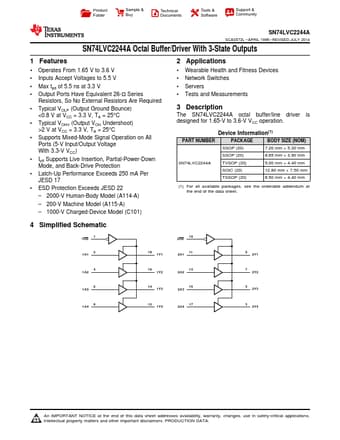

Preview of LVC2244A PDF

Datasheet Details

Part number:

LVC2244A

Manufacturer:

Texas Instruments ↗

File Size:

1.38 MB

Description:

Octal buffer/driver.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community SN74LVC2244A SCAS572L

* APRIL 1996

* REVISED.
