MSP430F2001 - Mixed-Signal Microcontroller

Texas Instruments

📥 Download Datasheet

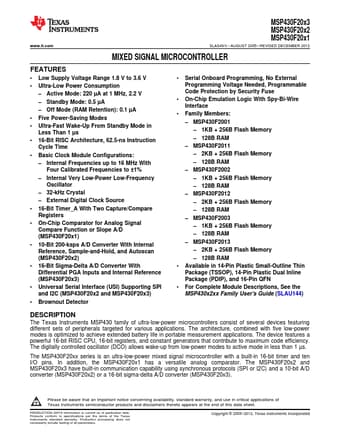

MSP430F2001 Datasheet Preview — Preview of MSP430F2001 PDF

Datasheet Details

Part number	MSP430F2001
Manufacturer	Texas Instruments
File Size	2.07 MB
Description	Mixed-Signal Microcontroller
Datasheet	MSP430F2001-etcTI.pdf

MSP430F2001 Product details

Description

, See the MSP430x2xx Family User's Guide (SLAU144) DESCRIPTION The Texas Instruments MSP430 family of ultra-low-power microcontrollers consist of several devices featuring different sets of peripherals targeted for various applications.The architecture, combined with five low-power modes is optimized to achieve extended battery life in portable measurement applications.The device

Features

1.
Low Supply Voltage Range 1.8 V to 3.6 V.
Ultra-Low Power Consumption.
Active Mode: 220 µA at 1 MHz, 2.2 V.
Standby Mode: 0.5 µA.
Off Mode (RAM Retention): 0.1 µA.
Five Power-Saving Modes.
Ultra-Fast Wake-Up From Standby Mode in Less Than 1 µs.
16-Bit RISC Architecture, 62.5-ns Instruction Cycle Time.
Basic Clock Module Configurations:.
Internal Frequencies up to 16 MHz With Four Calibrated Frequencies to.
