MSP430F2013-EP

Mixed-Signal Microcontroller

MSP430F2013-EP Features

* 1

* Low Supply Voltage Range 1.8 V to 3.6 V

* Ultra-Low Power Consumption

* Active Mode: 220 µA at 1 MHz, 2.2 V

* Standby Mode: 0.5 µA

* Off Mode (RAM Retention): 0.1 µA

* Five Power-Saving Modes

* Ultra-Fast Wake-Up From Standby Mode in Less T

MSP430F2013-EP General Description

, See the MSP430x2xx Family User's Guide (SLAU144) SUPPORTS DEFENSE, AEROSPACE, AND MEDICAL APPLICATIONS

* Controlled Baseline

* One Assembly/Test Site

* One Fabrication Site

* Available in Extended (

*40°C/125°C) Temperature Range(3)

* Extended Product.

MSP430F2013-EP Datasheet (1.14 MB)

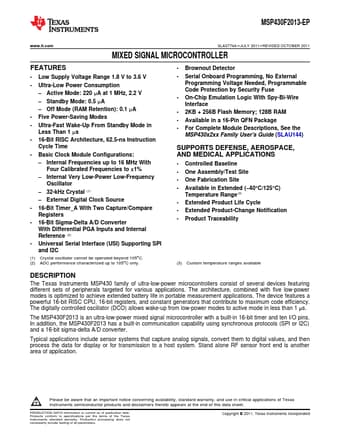

Preview of MSP430F2013-EP PDF

Datasheet Details

Part number:

MSP430F2013-EP

Manufacturer:

Texas Instruments ↗

File Size:

1.14 MB

Description:

Mixed-signal microcontroller.
