MSP430F6745, MSP430F6779 Datasheet - Texas Instruments

MSP430F6745 Polyphase Metering SoCs

The TI MSP430F677x family of polyphase metering SoCs are powerful highly integrated solutions for revenue meters that offer accuracy and low system cost with few external components. The F677x family of devices uses the low-power MSP430 CPU with a 32-bit multiplier to perform all energy calculations.

MSP430F6745 Features

* 1

* Accuracy < 0.1% Over 2000:1 Dynamic Range for Phase Current

* Meets or Exceeds ANSI C12.20 and IEC 62053 Standards

* Support for Multiple Sensors Such as Current Transformers, Rogowski Coils, or Shunts

* Power Measurement for up to Three Phases Plus Neutral

MSP430F6779-etcTI.pdf

This datasheet PDF includes multiple part numbers: MSP430F6745, MSP430F6779. Please refer to the document for exact specifications by model.

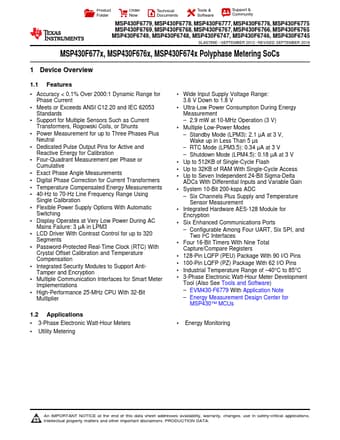

MSP430F6745 Datasheet Preview Page 2 MSP430F6745 Datasheet Preview Page 3

Datasheet Details

Part number:

MSP430F6745, MSP430F6779

Manufacturer:

Texas Instruments ↗

File Size:

2.88 MB

Description:

Polyphase metering socs.

Note:

This datasheet PDF includes multiple part numbers: MSP430F6745, MSP430F6779.
Please refer to the document for exact specifications by model.
