MSP430F6745A

Polyphase Metering SoCs

Texas Instruments

MSP430F6745A Features

* 1

* Accuracy < 0.1% Over 2000:1 Dynamic Range for Phase Current

* Meets or Exceeds ANSI C12.20 and IEC 62053 Standards

* Support for Multiple Sensors Such as Current Transformers, Rogowski Coils, or Shunts

* Power Measurement for up to Three Phases Plus Neutral

MSP430F6745A General Description

MSP430F67xxA polyphase metering SoCs are powerful highly integrated solutions that offer high accuracy and low system cost with few external components. The MSP430F67xxA microcontroller (MCU) family is part of the MSP430™ Metrology and Monitoring MCU portfolio targeting energy measurement and power .

MSP430F6745A Datasheet (2.92 MB)

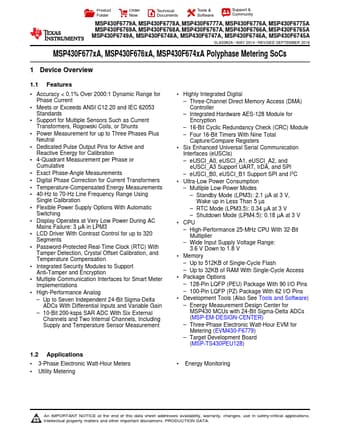

MSP430F6745A Datasheet Preview — Preview of MSP430F6745A PDF

Datasheet Details

Part number:

MSP430F6745A

Manufacturer:

Texas Instruments ↗

File Size:

2.92 MB

Description:

Polyphase metering socs.
Product Folder Order Now Technical Documents Tools & Software Support & Community MSP430F6779A, MSP430F6778A, MSP430F6777A, MSP430F6776A, MSP430F.
