MSP430G2302-EP - Mixed-Signal Microcontrollers

Texas Instruments

📥 Download Datasheet

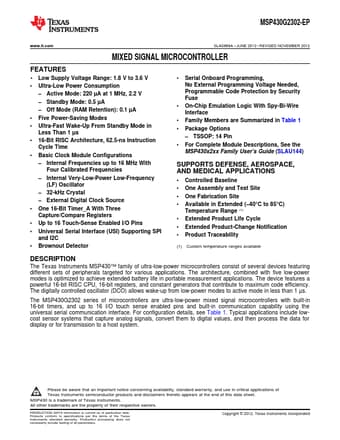

MSP430G2302-EP Datasheet Preview — Preview of MSP430G2302-EP PDF

Datasheet Details

Part number	MSP430G2302-EP
Manufacturer	Texas Instruments
File Size	1.06 MB
Description	Mixed-Signal Microcontrollers
Datasheet	MSP430G2302-EP-etcTI.pdf

MSP430G2302-EP Product details

Description

, See the MSP430x2xx Family User’s Guide (SLAU144) SUPPORTS DEFENSE, AEROSPACE, AND MEDICAL APPLICATIONS Controlled Baseline One Assembly and Test Site One Fabrication Site Available in Extended ( 40°C to 85°C) Temperature Range (1) Extended Product Life Cycle Extended Product-Change Notification Product Traceability (1) Custom temperature ranges available DESCRIPTION The Texas Instruments MSP430™ family of ultra-low-

Features

1.
23 Low Supply Voltage Range: 1.8 V to 3.6 V.
Ultra-Low Power Consumption.
Active Mode: 220 µA at 1 MHz, 2.2 V.
Standby Mode: 0.5 µA.
Off Mode (RAM Retention): 0.1 µA.
Five Power-Saving Modes.
Ultra-Fast Wake-Up From Standby Mode in Less Than 1 µs.
16-Bit RISC Architecture, 62.5-ns Instruction Cycle Time.
Basic Clock Module Configurations.
Internal Frequencies up to 16 MHz With Four Calibrated Frequencies.
