MSP430G2313, MSP430G2553 Datasheet - Texas Instruments

MSP430G2313 MIXED SIGNAL MICROCONTROLLER

, See the MSP430x2xx Family User’s Guide (SLAU144) DESCRIPTION The Texas Instruments MSP430 family of ultra-low-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is opti.

MSP430G2313 Features

* 1

* Low Supply-Voltage Range: 1.8 V to 3.6 V

* Ultra-Low Power Consumption

* Active Mode: 230 µA at 1 MHz, 2.2 V

* Standby Mode: 0.5 µA

* Off Mode (RAM Retention): 0.1 µA

* Five Power-Saving Modes

* Ultra-Fast Wake-Up From Standby Mode in Less

MSP430G2553-etcTI.pdf

This datasheet PDF includes multiple part numbers: MSP430G2313, MSP430G2553. Please refer to the document for exact specifications by model.

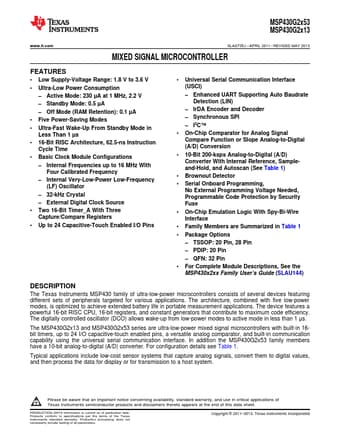

MSP430G2313 Datasheet Preview Page 2 MSP430G2313 Datasheet Preview Page 3

Datasheet Details

Part number:

MSP430G2313, MSP430G2553

Manufacturer:

Texas Instruments ↗

File Size:

2.18 MB

Description:

Mixed signal microcontroller.

Note:

This datasheet PDF includes multiple part numbers: MSP430G2313, MSP430G2553.
Please refer to the document for exact specifications by model.
