ONET1130EC

11.7 Gbps Transceiver

ONET1130EC Features

* 1 Dual CDR with 9.80-11.7 Gbps Reference-Free Operation

* 2-Wire Digital Interface with Integrated DACs and ADC for Control and Diagnostic Management

* Output Polarity Select for TX and RX

* Programmable Jitter Transfer Bandwidth

* Electrical and Optical Loop

ONET1130EC General Description

The ONET1130EC is a 2.5 V integrated modulator driver and limiting amplifier with transmit and receive clock and data recovery (CDR) designed to operate between 9.80 Gbps and 11.7 Gbps without the need for a reference clock. Optical and electrical loopback are included. CDR bypass mode can be used f.

ONET1130EC Datasheet (2.94 MB)

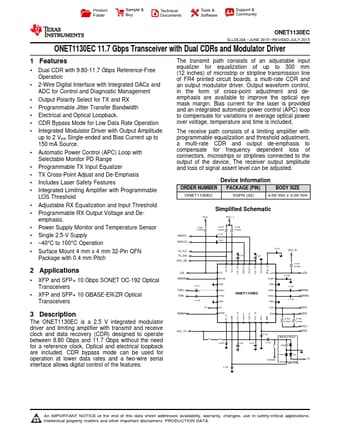

Preview of ONET1130EC PDF

Datasheet Details

Part number:

ONET1130EC

Manufacturer:

Texas Instruments ↗

File Size:

2.94 MB

Description:

11.7 gbps transceiver.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community ONET1130EC SLLSEJ3A

* JUNE 2015

* REVISED JU.
