ONET1141L

11.3 Gbps Modulator Driver

ONET1141L Features

* 1

* Digitally Selectable Output Amplitude up to 2.0VPP Single-Ended

* Digitally Selectable Bias Current up to 145mA Source

* 2-wire Digital Interface with Integrated DACs and ADC for Control and Diagnostic Management

* Automatic Power Control (APC) Loop

* Adju

ONET1141L General Description

The ONET1141L is a high-speed, 3.3V electroabsorption modulator driver designed to bias and modulate an electroabsorptive modulated laser (EML) at data rates from 1 Gbps up to 11.3 Gbps. The device provides a two-wire serial interface which allows digital control of the modulation and bias currents,.

ONET1141L Datasheet (2.27 MB)

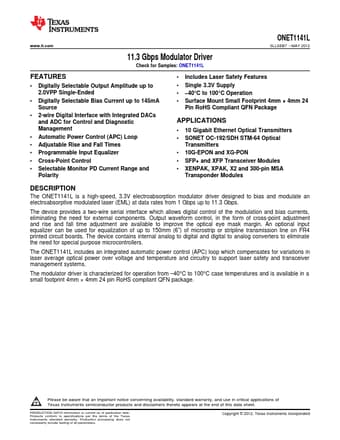

Preview of ONET1141L PDF

Datasheet Details

Part number:

ONET1141L

Manufacturer:

Texas Instruments ↗

File Size:

2.27 MB

Description:

11.3 gbps modulator driver.
