OPA2188 - Zero-Drift Operational Amplifiers

Texas Instruments

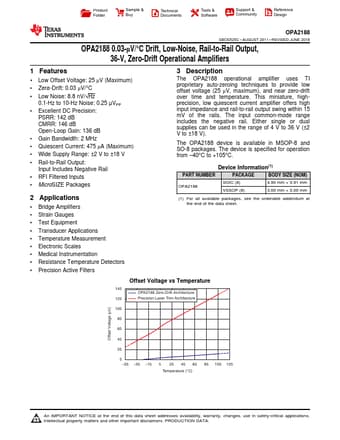

OPA2188 Datasheet Preview — Preview of OPA2188 PDF

Datasheet Details

Part number	OPA2188
Manufacturer	Texas Instruments ↗
File Size	1.39 MB
Description	Zero-Drift Operational Amplifiers
Datasheet	OPA2188-etcTI.pdf

OPA2188 Product details

Description

The OPA2188 operational amplifier uses TI proprietary auto-zeroing techniques to provide low offset voltage (25 μV, maximum), and near zero-drift over time and temperature.

Features

1 Low Offset Voltage: 25 μV (Maximum).
Zerø-Drift: 0.03 μV/°C.
Low Noise: 8.8 nV/√Hz 0.1-Hz to 10-Hz Noise: 0.25 µVPP.
Excellent DC Precision: PSRR: 142 dB CMRR: 146 dB Open-Loop Gain: 136 dB.
Gain Bandwidth: 2 MHz.
Quiescent Current: 475 μA (Maximum).
Wide Supply Range: ±2 V to ±18 V.
Rail-to-Rail Output: Input Includes Negative Rail.
RFI Filtered Inputs.
MicroSIZE Packages 2.
