OPA820-HT

Voltage-Feedback Operational Amplifier

OPA820-HT Datasheet (465.24 KB)

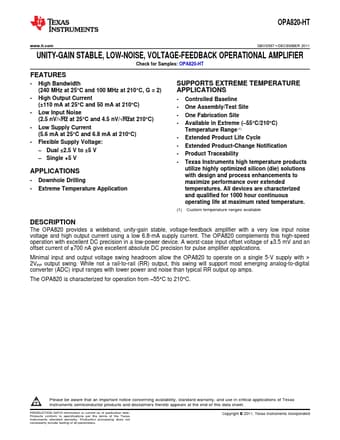

Preview of OPA820-HT PDF

Datasheet Details

Part number:

OPA820-HT

Manufacturer:

Texas Instruments ↗

File Size:

465.24 KB

Description:

Voltage-feedback operational amplifier.
OPA820-HT www.ti.com SBOS587

* DECEMBER 2011 UNITY-GAIN STABLE, LOW-NOISE, VOLTAGE-FEEDBACK OPERATIONAL AMPLIFIER Check for Samples: OPA82.

OPA820-HT Features

* 1

* High Bandwidth (240 MHz at 25°C and 100 MHz at 210°C, G = 2)

* High Output Current (±110 mA at 25°C and 50 mA at 210°C)

* Low Input Noise (2.5 nV/√Hz at 25°C and 4.5 nV/√Hzat 210°C)

* Low Supply Current (5.6 mA at 25°C and 6.8 mA at 210°C)

* Flexible Suppl

OPA820-HT General Description

The OPA820 provides a wideband, unity-gain stable, voltage-feedback amplifier with a very low input noise voltage and high output current using a low 6.8-mA supply current. The OPA820 complements this high-speed operation with excellent DC precision in a low-power device. A worst-case input offset v.
