PGA970

LVDT Sensor Signal Conditioner

PGA970 Features

* 1 Analog features

* Programmable-gain analog front end for LVDT sensors

* Excitation waveform generator and amplifier

* Dual 24-bit ADC with amplitude and phase demodulators

* 24-bit auxilary ADC

* On-chip internal temperature sensor

* 14-bit

PGA970 General Description

The PGA970 is a highly integrated system-on-chip LVDT sensor-signal conditioner with advanced signalprocessing capabilities. It contains a three-channel, low-noise, programmable-gain, analog front end that allows direct connection to the sense element, followed by three independent 24-bit delta-sigm.

PGA970 Datasheet (694.80 KB)

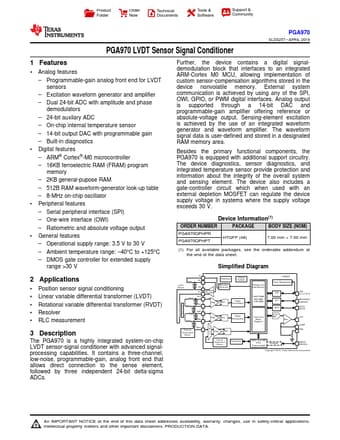

Preview of PGA970 PDF

Datasheet Details

Part number:

PGA970

Manufacturer:

Texas Instruments ↗

File Size:

694.80 KB

Description:

Lvdt sensor signal conditioner.
Product Folder Order Now Technical Documents Tools & Software Support & Community PGA970 LVDT Sensor Signal Conditioner PGA970 SLDS257

*.
