RC4560 Datasheet, Amplifier, Texas Instruments

RC4560 Features

  • Amplifier 1
  • Operating Voltage . . . ±2 V to ±18 V
  • Low Noise Voltage . . . 1.2 µVrms (Typ)
  • Wide GBW . . . 15 MHz (Typ)
  • Low THD . . . 0.05% (Typ)

PDF File Details

Part number:

RC4560

Manufacturer:

Texas Instruments ↗

File Size:

1.15MB

Download:

📄 Datasheet

Description:

Dual audio operational amplifier. ORDERING INFORMATION The RC4560 is a high-gain, wide-bandwidth, dual operational amplifier capable of driving 20 V peak-to-peak into

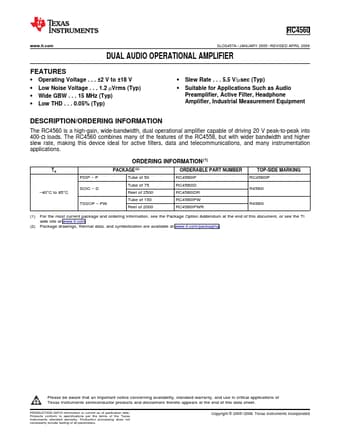

Datasheet Preview: RC4560 📥 Download PDF (1.15MB)
Page 2 of RC4560 Page 3 of RC4560

RC4560 Application

  • Applications Such as Audio Preamplifier, Active Filter, Headphone Amplifier, Industrial Measurement Equipment DESCRIPTION/ORDERING INFORMATION The
