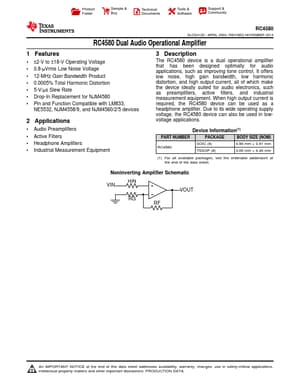

RC4580 Datasheet, Amplifier, Texas Instruments

RC4580 Features

• Amplifier
• 1 ±2-V to ±18-V Operating Voltage
• 0.8-μVrms Low Noise Voltage
• 12-MHz Gain Bandwidth Product
• 0.0005% Total Harmonic Distortion
• 5-V/μs Sle

PDF File Details

Part number:

RC4580

Manufacturer:

Texas Instruments ↗

File Size:

1.52MB

Download:

📄 Datasheet

Description:

Dual audio operational amplifier. The RC4580 device is a dual operational amplifier that has been designed optimally for audio applications, such as improving tone con

RC4580 Application

• Applications
• Audio Preamplifiers
• Active Filters
• Headphone Amplifiers
• Industrial Measurement Equipment 3 Des
