RF430F5978 - True System-In-Package

Texas Instruments

📥 Download Datasheet

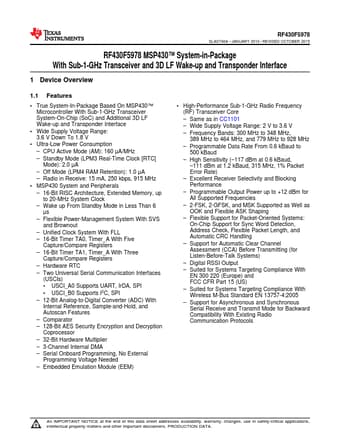

RF430F5978 Datasheet Preview — Preview of RF430F5978 PDF

Datasheet Details

Part number: RF430F5978
Manufacturer: Texas Instruments ↗
File Size: 2.28 MB
Datasheet: RF430F5978-etcTI.pdf
Description: True System-In-Package

RF430F5978 Product details

Description

The TI RF430F5978 system-in-package adds a 3D low-frequency (LF) wake-up and transponder interface to the CC430 ultra-low-power microcontroller system-on-chip (SoC) with integrated sub-1-GHz RF transceiver.

Features

1.
True System-In-Package Based On MSP430™ Microcontroller With Sub-1-GHz Transceiver System-On-Chip (SoC) and Additional 3D LF Wake-up and Transponder Interface.
Wide Supply Voltage Range: 3.6 V Down To 1.8 V.
Ultra-Low Power Consumption.
CPU Active Mode (AM): 160 µA/MHz.
Standby Mode (LPM3 Real-Time Clock [RTC] Mode): 2.0 µA.
Off Mode (LPM4 RAM Retention): 1.0 µA.
Radio in Receive: 15 mA, 250 kbps, 915 MHz.
MSP430 System a.
