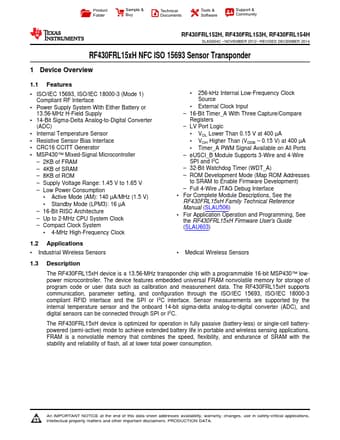

Description
, See the RF430FRL15xH Family Technical Reference Manual (SLAU506)
For Application Operation and Programming, See the RF430FRL15xH Firmware User's Guide (SLAU603)
1.2 Applications
Industrial Wireless Sensors
Medical Wireless Sensors
1.3 Description
The RF430FRL15xH device is a 13.56-MHz transponder chip with a programmable 16-bit MSP430™ low-
power microcontroller.The device
Features
- 1.
- ISO/IEC 15693, ISO/IEC 18000-3 (Mode 1) Compliant RF Interface.
- Power Supply System With Either Battery or 13.56-MHz H-Field Supply.
- 14-Bit Sigma-Delta Analog-to-Digital Converter (ADC).
- Internal Temperature Sensor.
- Resistive Sensor Bias Interface.
- CRC16 CCITT Generator.
- MSP430™ Mixed-Signal Microcontroller.
- 2KB of FRAM.
- 4KB of SRAM.
- 8KB of ROM.
- Supply Voltage Range: 1.45 V to 1.65 V.
- L.
