SA5532 - Dual Low-Noise Operational Amplifiers

SA5532 Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community NE5532, NE5532A, SA5532, SA5532A SLOS075J * NOVEMBER.
The NE5532, NE5532A, SA5532, and SA5532A devices are high-performance operational amplifiers combining excellent DC and AC characteristics.

SA5532 Features

* 1 Equivalent Input Noise Voltage: 5 nV/√Hz Typ at 1 kHz
* Unity-Gain Bandwidth: 10 MHz Typ
* Common-Mode Rejection Ratio: 100 dB Typ
* High DC Voltage Gain: 100 V/mV Typ
* Peak-to-Peak Output Voltage Swing 26 V Typ With VCC± = ±15 V and RL = 600 Ω
* H

SA5532 Applications

* AV Receivers
* Embedded PCs
* Netbooks
* Video Broadcasting and Infrastructure: Scalable Platforms
* DVD Recorders and Players
* Multichannel Video Transcoders

📥 Download Datasheet

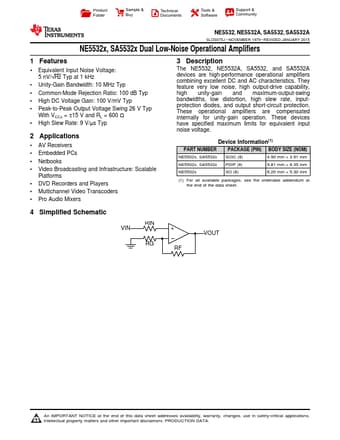

Preview of SA5532 PDF
datasheet Preview Page 2 datasheet Preview Page 3
