SN54CBT16212A - 24-BIT FET BUS-EXCHANGE SWITCHES

📥 Download Datasheet

Preview of SN54CBT16212A PDF
datasheet Preview Page 2 datasheet Preview Page 3

SN54CBT16212A Product details

Description

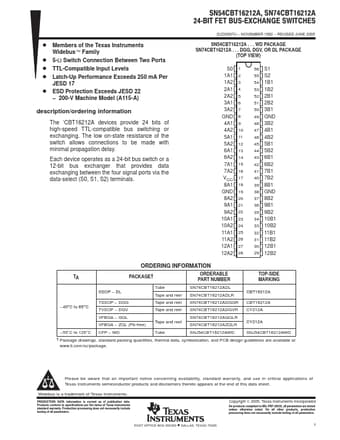

ordering information The ’CBT16212A devices provide 24 bits of high-speed TTL-compatible bus switching or exchanging.The low on-state resistance of the switch allows connections to be made with minimal propagation delay.Each device operates as a 24-bit bus switch or a 12-bit bus exchanger that provides data exchanging between the four signal ports via the data-select (S0, S1, S2) terminals.SCDS007U NOVEMBER 1992 REVISED JUNE 2005 SN54CBT16212A ...WD PACKAGE SN74CBT1621
