SN54HC541 - OCTAL BUFFERS AND LINE DRIVER

Product Overview

Texas Instruments

Datasheet Details

Part number	SN54HC541
Manufacturer	Texas Instruments
File Size	2.00 MB
Description	OCTAL BUFFERS AND LINE DRIVER
Datasheet	SN54HC541 Datasheet

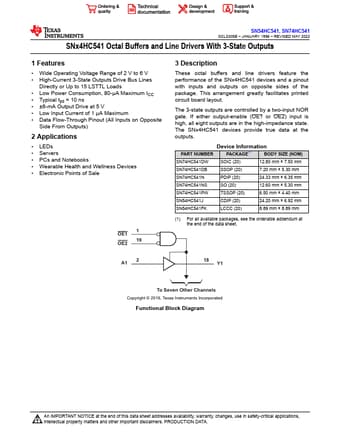

Additional preview pages of the SN54HC541 datasheet.

Product details

Description

These octal buffers and line drivers feature the performance of the SNx4HC541 devices and a pinout with inputs and outputs on opposite sides of the package.

Features

Wide Operating Voltage Range of 2 V to 6 V.
High-Current 3-State Outputs Drive Bus Lines Directly or Up to 15 LSTTL Loads.
Low Power Consumption, 80-µA Maximum ICC.
Typical tpd = 10 ns.
±6-mA Output Drive at 5 V.
Low Input Current of 1 µA Maximum.
Data Flow-Through Pinout (All Inputs on Opposite Side From Outputs) 2.
