SN54HC573A - Octal Transparent D-Type Latche

Product Overview

Texas Instruments

Datasheet Details

Part number	SN54HC573A
Manufacturer	Texas Instruments
File Size	1.97 MB
Description	Octal Transparent D-Type Latche
Datasheet	SN54HC573A Datasheet

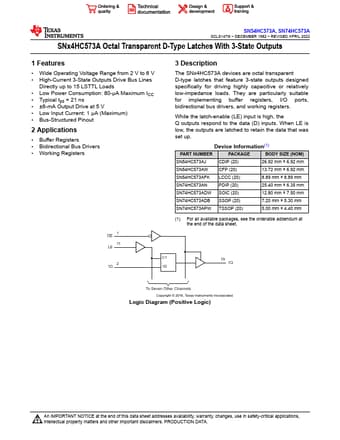

Additional preview pages of the SN54HC573A datasheet.

Product details

Description

The SNx4HC573A devices are octal transparent D-type latches that feature 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads.

Features

Wide Operating Voltage Range from 2 V to 6 V.
High-Current 3-State Outputs Drive Bus Lines Directly up to 15 LSTTL Loads.
Low Power Consumption: 80-µA Maximum ICC.
Typical tpd = 21 ns.
±6-mA Output Drive at 5 V.
Low Input Current: 1 µA (Maximum).
Bus-Structured Pinout 2.
