SN65HVD23, SN65HVD20 Extended Common-Mode RS-485 Transceivers

SN65HVD23 Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community Reference Design SN65HVD20, SN65HVD21, SN65HVD22, SN65HVD23.
The transceivers in the SN65HVD2x family offer performance far exceeding typical RS-485 devices.

SN65HVD23 Features

* 1 Common-Mode Voltage Range (
* 20 V to 25 V) More Than Doubles TIA/EIA-485 Requirement
* Receiver Equalization Extends Cable Length, Signaling Rate (SN65HVD2[3,4])
* Reduced Unit-Load for up to 256 Nodes
* Bus I/O Protection to Over 16-kV HBM
* Failsaf

SN65HVD23 Applications

* Long Cable Solutions
* Factory Automation
* Security Networks
* Building HVAC
* Severe Electrical Environments
* Electrical Power Inverters
* Industrial Drives

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SN65HVD23, SN65HVD20. Please refer to the document for exact specifications by model.

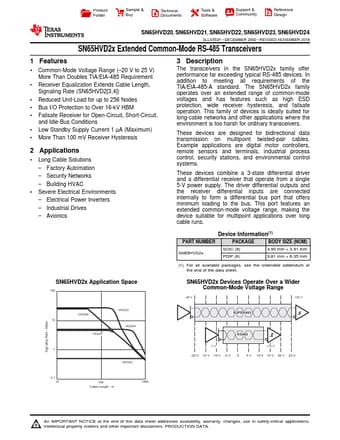

datasheet Preview Page 2 datasheet Preview Page 3
