SN65HVD231, SN65HVD230 Datasheet - Texas Instruments

SN65HVD231 3.3-V CAN Bus Transceivers

The SN65HVD230, SN65HVD231, and SN65HVD232 controller area network (CAN) transceivers are compatible to the specifications of the ISO 11898-2 High Speed CAN Physical Layer standard (transceiver). These devices are designed for data rates up to 1 megabit per second (Mbps), and include many protection.

SN65HVD231 Features

* 1 Operates with a single 3.3 V Supply

* Compatible With ISO 11898-2 Standard

* Low Power Replacement for the PCA82C250 Footprint

* Bus Pin ESD Protection Exceeds ±16 kV HBM

* High Input Impedance Allows for Up to 120 Nodes on a Bus

* Adjustable Driver

SN65HVD230-etcTI.pdf

This datasheet PDF includes multiple part numbers: SN65HVD231, SN65HVD230. Please refer to the document for exact specifications by model.

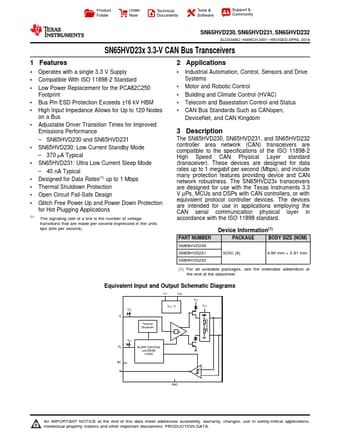

SN65HVD231 Datasheet Preview Page 2 SN65HVD231 Datasheet Preview Page 3

Datasheet Details

Part number:

SN65HVD231, SN65HVD230

Manufacturer:

Texas Instruments ↗

File Size:

1.28 MB

Description:

3.3-v can bus transceivers.

Note:

This datasheet PDF includes multiple part numbers: SN65HVD231, SN65HVD230.
Please refer to the document for exact specifications by model.
