SN65HVD3082E Datasheet - Texas Instruments

SN65HVD3082E Low-Power RS-485 Transceivers

The SNx5HVD308xE are half-duplex transceivers designed for RS-485 data bus networks. Powered by a 5-V supply, they are fully compliant with TIA/ EIA-485A standard. With controlled transition times, these devices are suitable for transmitting data over long twisted-pair cables. The SN65HVD3082E and S.

SN65HVD3082E Features

* Meets or exceeds the requirements of the TIA/ EIA-485A standard

* Low quiescent power

* 0.3-mA Active mode

* 1-nA Shutdown mode

* 1/8 Unit load up to 256 nodes on a bus

* Bus-pin ESD protection up to 15 kV

* Industry-standard SN75176 footprin

SN65HVD3082E Datasheet (1.37 MB)

Preview of SN65HVD3082E PDF

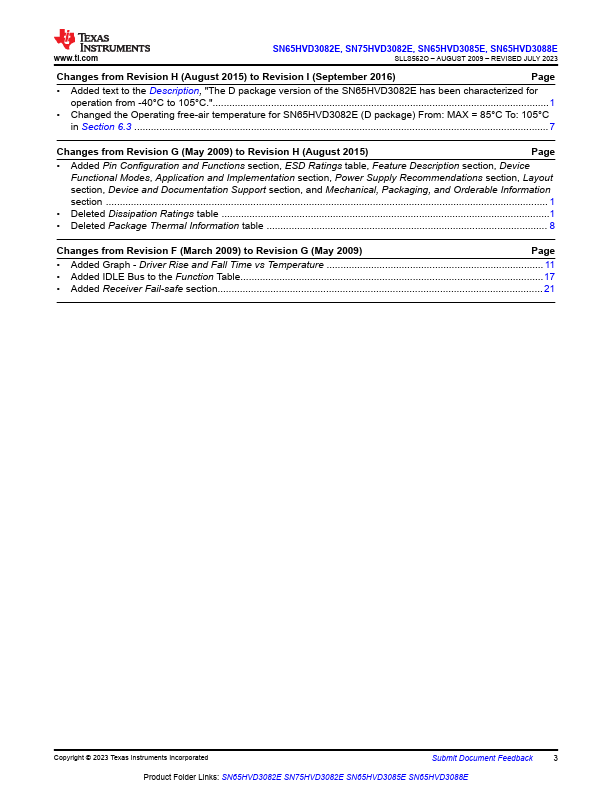

SN65HVD3082E Datasheet Preview Page 2 SN65HVD3082E Datasheet Preview Page 3

Datasheet Details

Part number:

SN65HVD3082E

Manufacturer:

Texas Instruments ↗

File Size:

1.37 MB

Description:

Low-power rs-485 transceivers.
