SN65HVD3085E, SN65HVD3082E Low-Power RS-485 Transceivers

Texas Instruments

Description

SN65HVD3082E, SN75HVD3082E, SN65HVD3085E, SN65HVD3088E SLLS562O * AUGUST 2009 * REVISED JULY 2023 SNx5HVD308xE Low-Power RS-485 Transc.
The SNx5HVD308xE are half-duplex transceivers designed for RS-485 data bus networks.

📥 Download Datasheet

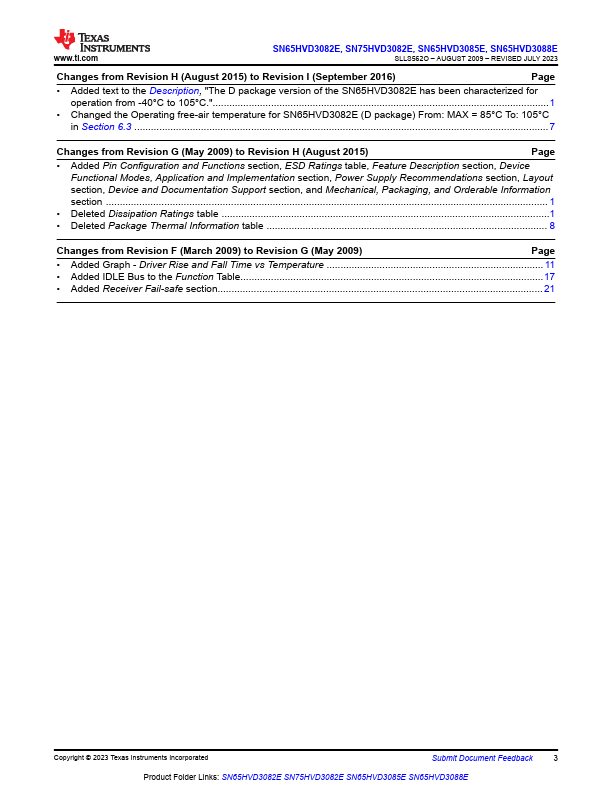

SN65HVD3085E Datasheet Preview — This datasheet PDF includes multiple part numbers: SN65HVD3085E, SN65HVD3082E. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SN65HVD3085E, SN65HVD3082E
Manufacturer: Texas Instruments ↗
File Size: 1.37 MB
Datasheet: SN65HVD3082E-etcTI.pdf
Description: Low-Power RS-485 Transceivers
Note: This datasheet PDF includes multiple part numbers: SN65HVD3085E, SN65HVD3082E.
Please refer to the document for exact specifications by model.

Features

* Meets or exceeds the requirements of the TIA/ EIA-485A standard
* Low quiescent power
* 0.3-mA Active mode
* 1-nA Shutdown mode
* 1/8 Unit load up to 256 nodes on a bus
* Bus-pin ESD protection up to 15 kV
* Industry-standard SN75176 footprin

Applications

* Energy meter networks
* Motor control
* Power inverters
* Industrial automation
* Building automation networks
* Battery-powered applications
