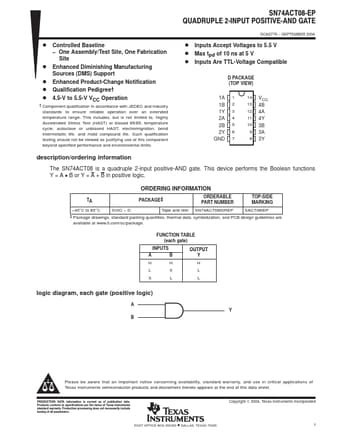

Preview of SN74ACT08-EP PDF
SN74ACT08-EP Datasheet Preview Page 2 SN74ACT08-EP Datasheet Preview Page 3

Datasheet Details

Part number:

SN74ACT08-EP

Manufacturer:

Texas Instruments ↗

File Size:

773.80 KB

Description:

Quadruple 2-input positive-and gates.

SN74ACT08-EP, QUADRUPLE 2-INPUT POSITIVE-AND GATES

ordering information The SN74ACT08 is a quadruple 2-input positive-AND gate.

This device performs the Boolean functions Y = A  B or Y = A + B in positive logic.

ORDERING INFORMATION TA PACKAGE‡ ORDERABLE PART NUMBER TOP-SIDE MARKING *40°C to 85°C SOIC * D Tape and reel SN74A

SN74ACT08ĆEP QUADRUPLE 2ĆINPUT POSITIVEĆAND GATE D Controlled Baseline One Assembly/Test Site, One Fabrication Site D Enhanced Diminishing Manufacturing Sources (DMS) Support D Enhanced Product-Change Notification D Qualification Pedigree† D 4.5-V to 5.5-V VCC Operation † Component qualification in accordance with JEDEC and industry standards to ensure reliable operation over an extended temperature range.

This includes, but is not limited to, Highly Accelerated Stress Test (HAST) or
