SN74ACT16245-EP Datasheet - Texas Instruments

SN74ACT16245-EP 16-BIT BUS TRANSCEIVER

The SN74ACT16245Q-EP is a 16-bit bus transceiver organized as dual-octal noninverting 3-state transceivers and designed for asynchronous two-way communication between data buses. The control-function implementation minimizes external timing requirements. DL PACKAGE (TOP VIEW) 1DIR 1 1B1 2 1B2 3 GN.
SN74ACT16245Q-EP 16-BIT BUS TRANSCEIVER WITH 3-STATE OUTPUTS SCAS677A MAY 2002 REVISED JULY 2002 D Controlled Baseline One Assembly/Test Site, One Fabrication Site D Extended Temperature Performance of 40°C to 125°C D Enhanced Diminishing Manufacturing Sources (DMS) Support D Enhanced Product Change Notification D Qualification Pedigree† D Member of the Texas Instruments Widebus Family D Inputs Are TTL-Voltage Compatible D 3-State Outputs Drive Bus Lines .

SN74ACT16245-EP Datasheet (700.15 KB)

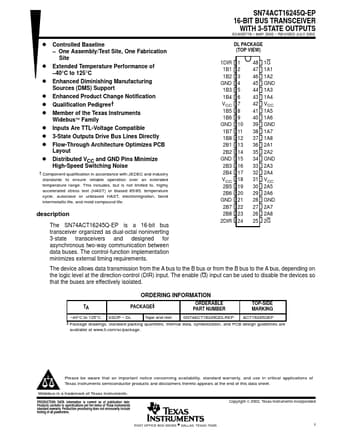

Preview of SN74ACT16245-EP PDF
SN74ACT16245-EP Datasheet Preview Page 2 SN74ACT16245-EP Datasheet Preview Page 3

Datasheet Details

Part number:

SN74ACT16245-EP

Manufacturer:

Texas Instruments ↗

File Size:

700.15 KB

Description:

16-bit bus transceiver.
