SN74AVC4T245

Dual-Bit Bus Transceiver

SN74AVC4T245 Features

* Control inputs VIH/VIL levels are referenced to VCCA voltage

* Fully configurable dual-rail design allows each port to operate over the full 1.2V to 3.6V power-supply range

* I/Os Are 4.6V tolerant

* Ioff supports partial power-down-mode operation

* Maximum

SN74AVC4T245 General Description

This 4-bit noninverting bus transceiver uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.2V to 3.6V. The B port is designed to track VCCB. VCCB accepts any supply voltage from 1.2V to 3.6V. The SN74AVC4T245 is optimized t.

SN74AVC4T245 Datasheet (3.37 MB)

Preview of SN74AVC4T245 PDF

Datasheet Details

Part number:

SN74AVC4T245

Manufacturer:

Texas Instruments ↗

File Size:

3.37 MB

Description:

Dual-bit bus transceiver.

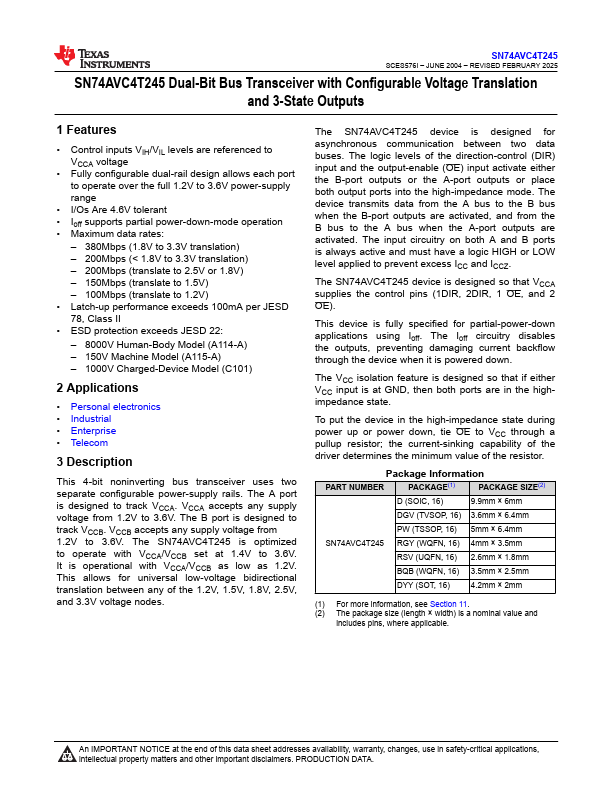

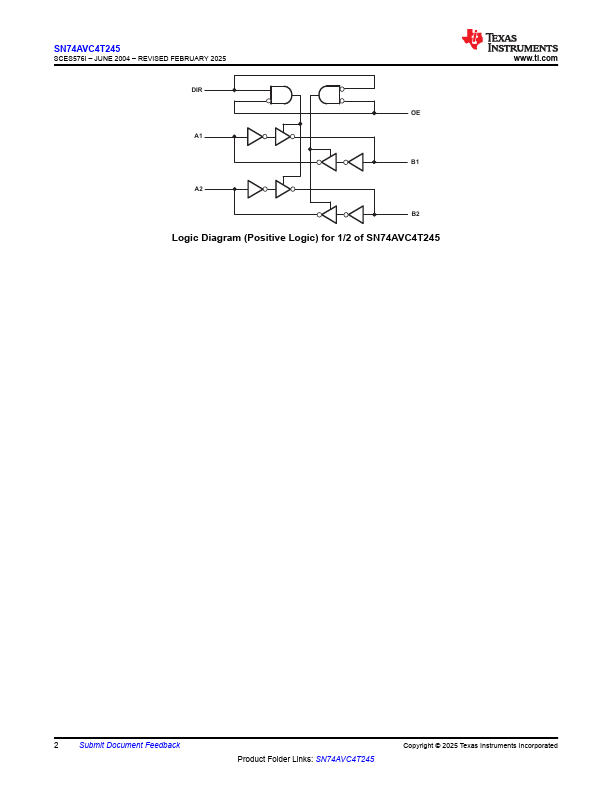

SN74AVC4T245 SCES576I JUNE 2004 REVISED FEBRUARY 2025 SN74AVC4T245 Dual-Bit Bus Transceiver with Configurable Voltage Translation .
